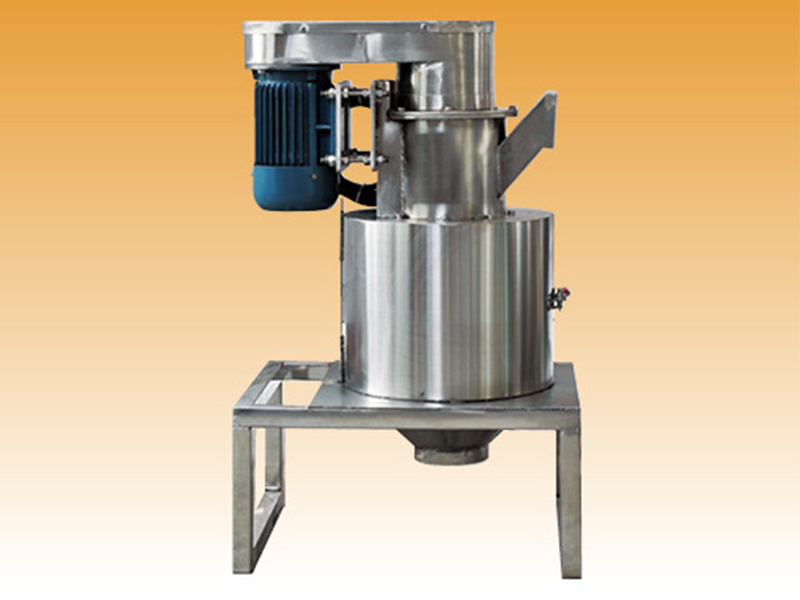

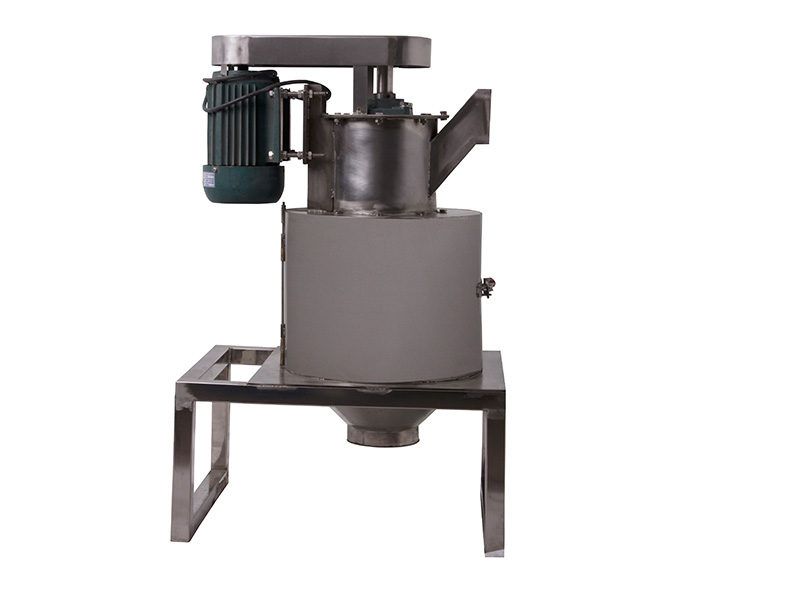

• Bread Grinder

ZXJ-160
Power: 1.5Kw
Power supply: ~380V 50Hz
Speed: 900r/min
Rated output: 20-100Kg/h
Dimensions: 660(L)x520(W)x1040(H)mm
Weight; 90KG
Inquiry Now

Technical Parameters of ZXJ160 Bread Crumb Crusher
Power: 1.5Kw

Power supply: ~380V 50Hz

Speed: 900r/min

Rated output: 20-100Kg/h

Dimensions: 660(L)x520(W)x1040(H)mm

Weight; 90KG


Characteristics
This vertical grinder produced by Jinan Tiantai machinery factory is made up of three teams of knives with various shapes. The first team is 2 sets of flat knives, which would cut the bread into sheets; the second team is 8 sets of oblique knives spread equably on the main roller, and these knifes would cut the bread sheets into strips; the third team is 24 sets of denti-form knives, together with different screen stencil, needle crumbs is produced out.
This vertical grinder has many advantages, such as high efficiency, high rate of finished products, easy clean-up, etc.

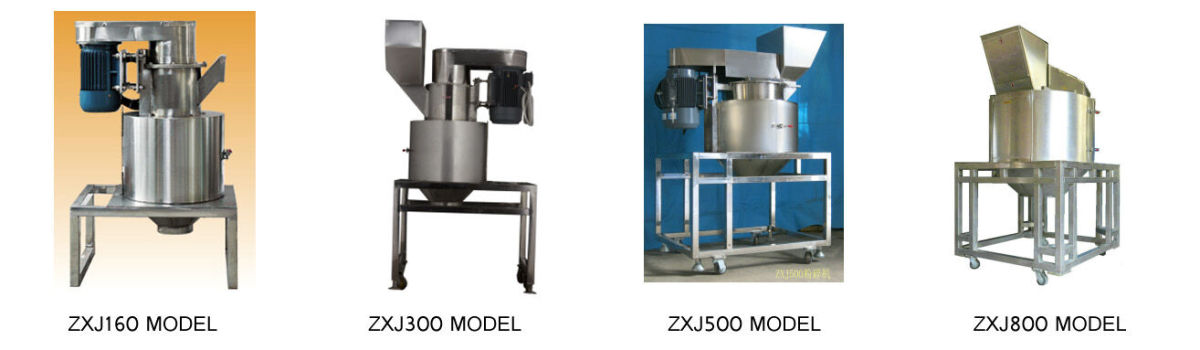

Now the bread crumb have four different models.


Main technique parameters.

ModelZXJ160ZXJ300ZXJ500ZXJ800
Power1.5KW7.5KW11KW22KW
ElectricityAC380V  50HzAC380V  50HzAC380V  50HzAC380V  50Hz
Rotating speed850r/min850r/min400-700r/min (Frequency controller)400-700r/min (Frequency controller)
Capacity20-100Kg/h200-400Kg/h300-500Kg/h800-2000Kg/h
Dimension

660(L)x520(W)

x1040(H)mm

1030(L)x780(W)x1780(H)mm

(Manual feeding)

1030(L)x780(W)x2000(H)mm

(Conveyor feeding)

1500(L)x1000(W)x2000(H)mm 1900(L)x1360(W)x2250(H)mm
Weight90KG350KG600KG1800KG
